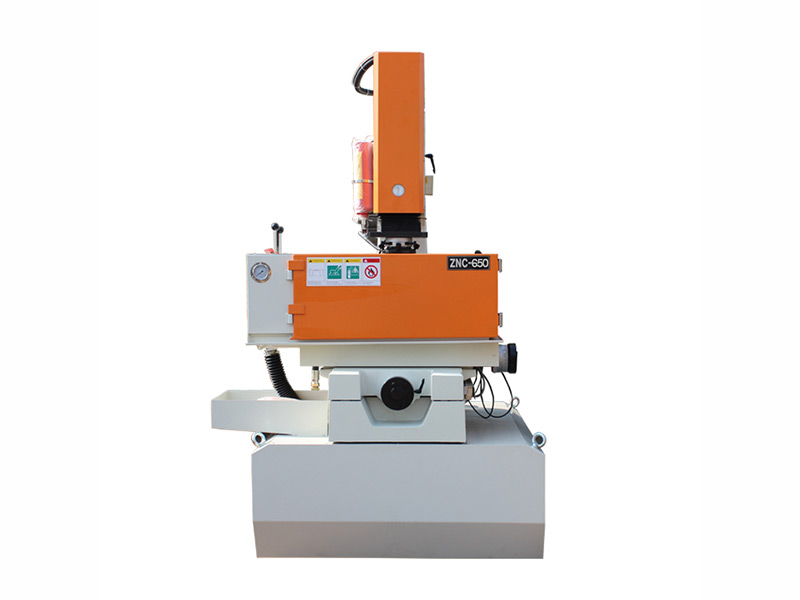

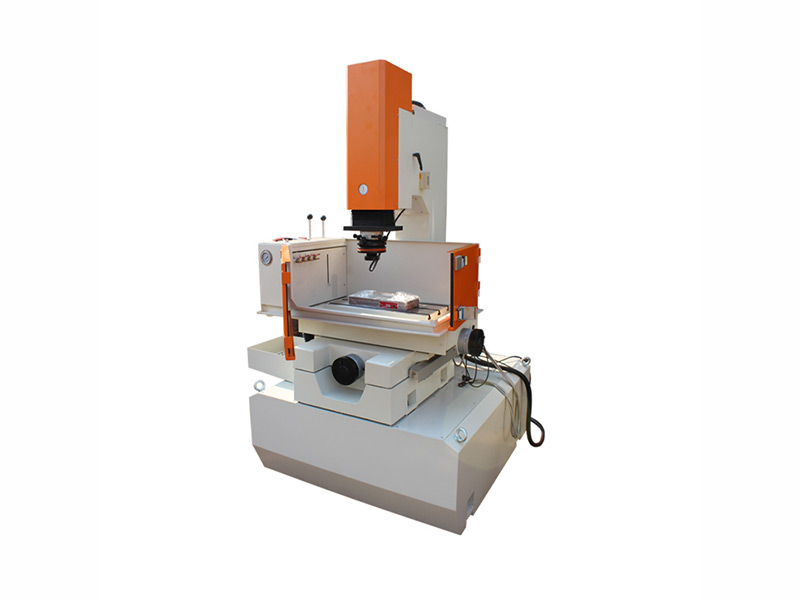

ZNC650 Die sinking EDM Characteristic：
High rigidity mechanical structure and humanized design have excellent cost performance;
Various functions such as deep holes, large areas, and super hard materials to meet various
mold processing requirements;
Ten segments of programmable processing, from coarse to fine, completed at one time
convenient and flexible;
Simple operation interface, suitable for all levels of personnel, easy to master;
The unique two-stage can set the servo system to greatly increase the processing speed;
Computer built-in expert system can minimize electrode loss;
UItra-fine processing surface, and equipped with mirror surface processing circuit;
High-sensitivity anti-carbon deposition circuit ensures that no arcing occurs;
Multiple fire safety protection devices to ensure safe and reliable use;
Modular electrical design, extremely low failure rate, easy to upgrade.
Parameter Table：
| Model number | ZNC 650 |
| Workbench size(mm) | 1000*600 |
| Working slot size(mm) | 1700*1000*620 |
| X-Y-Z travel(mm) | 600*500*250 |
| Spindle head stroke(mm) | 300 |
| Electrode lifting weight(kg) | 200 |
| Max. workpiece weight(kg) | 2250 |
| Electrode plate to table distance(mm) | 260-860 |
| Working fluid capacity(L) | 940 |
| Dimension(mm) | 2150*1800*2400 |
Standard accessories：
Oil strainer, standard electrode head magnetic injector, drill chuck, fixture set, tool box, quartz work light.
Optional accessories：
Automatic fire extinguisher, processing fluid cooler, magnetic seat, 3R fixture.

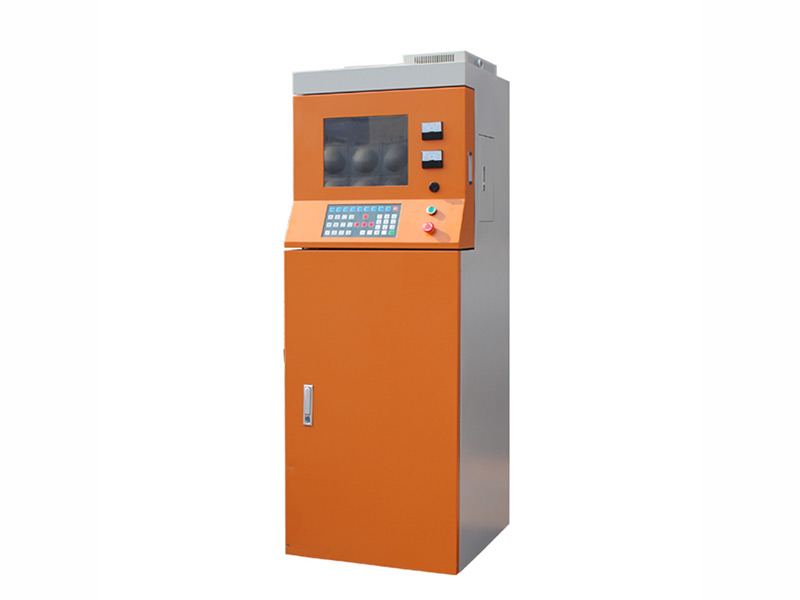

* "F in the table model indicates that the control cabinet is a screen display control cabinet. In the distribution box model,"A is a single-axis digital tube type and" is a single-axis screen display type.
